Cov khoom lag luam

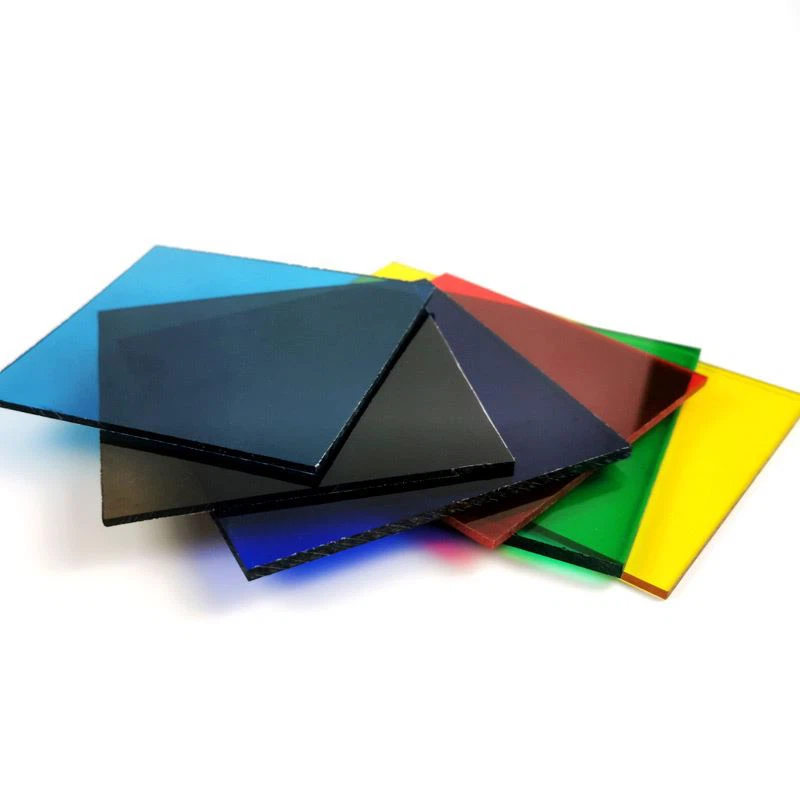

Tuam Tshoj Chaw Tsim Tshuaj Dav 1220mm Khoom Polycarbonate
Kev tiv thaiv siab, 250 npaug siab dua li cov iav ib txwm siv
nrog UV Txheej, Anti-aging
Xa kev nug
Khoom Taw qhia
Khoom Taw Qhia
Cov nplooj ntawv polycarbonate khoom, zoo kawg li cuam tshuam-tiv taus thiab 200 lub sij hawm muaj zog dua iav, zoo li tsis tawg tsis tau hnav thiab yooj yim rau kev ua haujlwm nrog, ua rau lawv yog cov khoom siv zoo tshaj plaws rau sab nraum zoov vov tsev. Cov nplooj ntawv no, tshwj xeeb tshaj yog nyob rau hauv lawv daim ntawv ntshiab, muaj lub teeb kis tau tus mob siab txog 85%, ua ke nrog kev tiv thaiv UV los thaiv cov teeb meem ultraviolet rays. Lub 4 hli khoom polycarbonate panels, zoo meej rau ntau yam kev siv xws li kev lag luam vov tsev, skylights, thiab carport npog, xyuas kom durability thiab dav siv, los ntawm lub qhov rooj awnings mus rau lub tsev xog paj vov tsev.
Ntawm UNQ, peb nkag siab txog lub luag haujlwm tseem ceeb uas cov khoom siv hauv tsev zoo ua si hauv koj cov haujlwm. Yog vim li cas peb thiaj txaus siab los qhia peb cov Polycarbonate Solid Sheet - qhov zoo tshaj plaws ntawm kev ua haujlwm ntev thiab kev zoo nkauj, tsim los txhawb koj cov kev lag luam architectural. Txawm hais tias koj tab tom tsim lub skyscraper niaj hnub los yog lub tsev cog khoom ua haujlwm, peb cov nplooj ntawv yog tsim kom tau raws li qhov koj xav tau.
Khoom Parameter (Specification)
|
Khoom npe |
Khoom polycarbonate nrog 1220mm dav |
|
Warranty |
Ntau tshaj 10-xyoo |
|
Thickness |
1. 2-18 0mm |
|
Tsis tu ncua |
1.22m,1.56m,1.82m,2.1m |
| Khoom siv |
Sabic, Makrolon, Lexan |
| Xim | Ntshiab, Ntsuab, Xiav, Bronze, Opal, Lake-Blue lossis customized |
| nplaim taws Resistance | B1 iav |
| Tus nqi kis tau tus mob |
85% |
Khoom feature thiab daim ntawv thov
feature
-
High Light Transmission:Peb cov ntawv txheeb xyuas kom pom lub teeb pom kev zoo, ua rau lawv zoo tagnrho rau cov ntawv thov uas xav tau lub teeb pom kev zoo.
Lightweight Design:Txawm hais tias lawv qhov ruaj khov, cov nplooj ntawv no yog lub teeb tsis txaus ntseeg, ua kom yooj yim tuav thiab teeb tsa.
Impact Resistance:Crafted los tiv thaiv tej yam kev mob hnyav, peb cov nplooj ntawv yog zoo unbreakable, muab superior tiv thaiv lub ntsiab.
Kev kub siab dav:Kev ua haujlwm tseem tsis muaj kev cuam tshuam ntawm -40 degree thiab +120 degree, kom ntseeg tau tias tsim nyog nyob rau hauv ntau yam huab cua.
Suab rwb thaiv tsev:Txaus siab rau txo cov pa phem, ua rau cov nplooj ntawv no zoo meej rau hauv nroog thiab cov chaw tsheb loj.
-
Daim ntawv thov
-
UNQ's Polycarbonate Solid Sheets muaj ntau yam zoo kawg nkaus, haum rau:
Architectural Applications:Skylights, canopies, taug kev, thiab hloov qhov rais.
Commercial Spaces:Partitions, signage, display panels, thiab kev tiv thaiv thaiv.
Kev Siv Hluav Taws Xob:Machine guards, tiv thaiv npog, thiab tsev cog khoom vaj huam sib luag.
Kev Nyab Xeeb thiab Kev Nyab Xeeb:Bulletproof panels, shields, thiab suab barriers.
-
|
|
 |
Khoom zoo
Peb cov ntawv Polycarbonate Solid Sheets tau qhab nia siab hauv ntau qhov chaw tseem ceeb:
Durability:Nrog rau kev cuam tshuam tsis zoo tshaj iav thiab lwm yam khoom siv, cov ntawv no muab kev ua haujlwm ntev.
Versatility:Qhov zoo tshaj plaws rau ntau yam kev siv, los ntawm skylights thiab greenhouses mus rau lub suab teeb meem thiab cov lus tshaj tawm.
Kev tu:Cov nplooj ntawv no tiv taus yellowing thiab huab cua, kom ntseeg tau tias lawv tswj lawv qhov tseeb thiab cuam tshuam rau lub sijhawm.
Kev nyab xeeb:Qhov xwm txheej nplaim taws ua rau lawv muaj kev nyab xeeb rau ntau qhov chaw.
Customizability:Muaj nyob rau hauv ntau yam thicknesses thiab xim, peb cov ntawv tuaj yeem ua raws li koj qhov kev xav tau tshwj xeeb.
Cov Khoom Siv Polycarbonate Sheet Technical Data
| Thickness (hli) |
Qhov hnyav (kg / m2) |
Mini-bending radius (mm) |
Dav (m) |
Ntev (m) |
Xim |
| 1.1 |
1.32 |
234 |
1.22-2.1 |
tsis txwv, Nws tuaj yeem dov li 30 meter |
Ntshiab/ntsuab/ Xiav / Brown / Opal / Liab / Daj, los yog kho |
| 2.0 |
2.40 |
360 |
1.22-2.1 |
||
| 3.0 |
3.60 |
540 |
1.22-2.1 |
||
| 4.0 |
4.80 |
720 |
1.22-2.1 |
||
| 5.0 |
6.00 |
900 |
1.22-2.1 |
Tsawg dua lossis sib npaug li 5.8m rau 20ft, Tsawg dua lossis sib npaug li 11.8m rau 40ft |
|
| 6.0 |
7.30 |
1080 |
1.22-2.1 |
||
| 8.0 |
9.60 |
1440 |
1.22-2.1 |
| Kev cuam tshuam lub zog |
850J/m cuam tshuam lub zog ntawm cov ntaub ntawv PC yog 250 npaug ntawm iav, 20-30 zaug ntawm PMMA daim ntawv |
| Lub teeb kis tau tus mob |
80% -90% rau txawv thickness ntawm cov xim ntshiab |
| UV tsis kam | 50μm UV txheej, tuaj yeem lim 99% ultraviolet hluav taws xob hauv tshav ntuj |
| Coefficient ntawm thermal expansion | 0.065 hli/m degree c |
| Kev pabcuam kub | -40 degree c rau 120 degree c |
| Thaum tshav kub kub conductivity | 2. 3-3.9 W/m2 degree c |
| Tensile zog | >60N / hli 2 |
| Flexural zog | 100N / hli 2 |
| Tensile Street thaum so | >65mpa wb |
| Thaum tshav kub kub deflection | 140 degree c |
| Soundproof Index | 4mm thickness --27dB,5mm--28dB,6mm--29dB |
Hais Txog Peb & Ntawv Pov Thawj
Unique Plastic Manufacturer CO.LTD nyob hauv Baoding. Peb muaj cov kab ntau lawm tshaj plaws los ntawm lub teb chaws Yelemees. Peb txoj kev mob siab rau kev ua tau zoo, kev tsim kho tshiab, thiab cov neeg siv khoom txaus siab tau tsim peb los ua cov chaw tsim khoom ntseeg siab hauv kev lag luam polycarbonate. Nrog rau peb txoj kev cog lus rau kev saib xyuas ib puag ncig thiab kev txhim kho thev naus laus zis, peb caw koj los koom nrog peb hauv kev txhim kho lub neej yav tom ntej zoo dua.
FAQ
Yuav ua li cas thicknesses muaj rau cov Polycarbonate Solid Sheets?
Muaj nyob rau hauv thicknesses li ntawm 1.5mm mus rau 18mm.
Puas muaj xim kev cai?
Yog lawm, peb muab ntau hom xim xim thiab tuaj yeem kho xim raws li koj xav tau.
Lub neej ntawm cov ntawv no yog dab tsi?
Nrog rau kev txhim kho thiab kev saib xyuas kom zoo, lawv tuaj yeem kav ntev dua 15 xyoos.
Cov nplooj ntawv puas yooj yim rau nruab?
Yog lawm, lawv qhov hnyav hnyav ua rau lawv yooj yim rau kev tswj thiab teeb tsa.
Cov ntawv no puas tuaj yeem siv rau cov ntawv thov tsis muaj phom sij?
Yog lawm, vim lawv cov kev cuam tshuam siab, lawv tsim nyog rau kev ruaj ntseg daim ntaub ntawv.
Lawv ua li cas hauv qhov kub thiab txias?
Peb cov ntawv yog tsim los ua haujlwm zoo ntawm -40 degree mus rau +120 degree .
Koj muab warranty dab tsi?
Peb muab rau 10- xyoo lav tiv thaiv daj thiab tawg.
Puas muaj cov qauv ntawv rau kev sim?
Yog lawm, peb muab cov qauv dawb rau kev kuaj zoo.
Yuav ua li cas cov ntaub ntawv no pab txhawb zog efficiency?
Lawv lub teeb kis tau zoo txo qhov kev xav tau ntawm cov teeb pom kev zoo, txhim kho lub zog ua haujlwm.
Puas muaj kev txhawb nqa tom qab muag?
Yog lawm, peb muab kev pabcuam tomqab muag kom paub meej cov neeg siv khoom txaus siab.
Yog xav paub ntxiv thiab xav paub txog UNQ qhov txawv, thov hu rau peb ntawm sales@unqpc.com. Cia peb tus khub coj koj lub zeem muag rau lub neej nrog peb cov ntawv zoo Polycarbonate Khoom.
